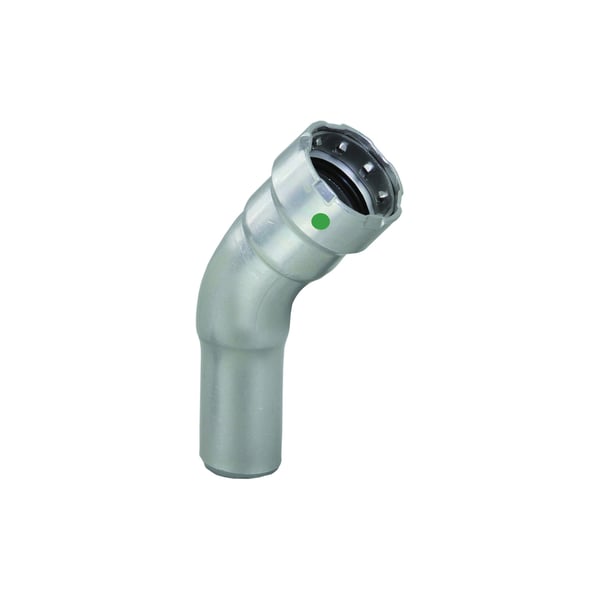

MegaPress® 26125 45 deg Street Elbow, 2 in, Fitting x Press, Carbon Steel, Import


Description

MegaPress® Street Elbow, Fitting/Connector Type: 45 deg Elbow, 2 in Nominal, Fitting x Press, -40 To 180 deg F, Carbon Steel, Import

Viega MegaPress® is a carbon steel press system and can be utilized with Schedule 5 to Schedule 40 black iron pipe. Viega MegaPress® fittings for black iron pipe reduce installation time and eliminate messy cutting oils.

Specifications

Domestic/Import Import
End Style Fitting x Press
Fitting/Connector Type 45 deg Elbow
Material Carbon Steel
Nominal Size 2 in
Temperature Rating -40 To 180 deg F

Country of Origin: Germany

Standards and Approvals: ABS Listed, ANSI LC4/CSA 6.32, ASME B31, CRN OA14541.6, CSA B149.1, FM 1920, GL Listed, LR Certified, NFPA 13/13D/13R/31/54/58

Application:
Compressed Air Systems, Chilled Water Systems, Hydronic Heating Systems, Fire Protection Systems, Solar Systems and Low Pressure Steam Systems

Features

  • Makes secure press connections in less than seven seconds
  • No oil or heavy threading equipment needed
  • Patented Viega Smart Connect® feature
  • More than 150 different configurations
  • Connections can be made wet or dry
  • Carbon steel piping system SCH 5 to SCH 40
