Spears® Spears® 435-030 Standard, 3 in nominal, Socket x FNPT end style, SCH 40, PVC, Domestic
Spears® Spears® 435-030 Standard, 3 in nominal, Socket x FNPT end style, SCH 40, PVC, Domestic
SKU: 7539
Manufacturer Part Number: 435-030
UPC: 054211191651
Brand: Spears®
Description

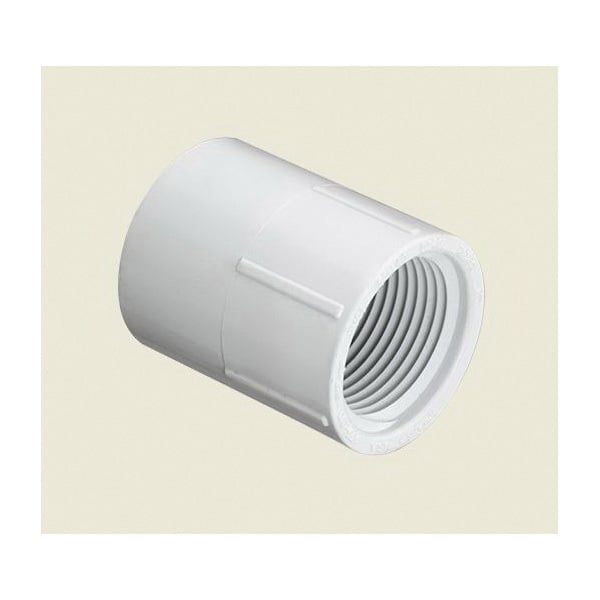

Spears® 435-030, Standard, Adapter Fitting/Connector, 3 in Nominal, Socket x FNPT End Style, 3-1/2 in Length, SCH 40 Schedule, Molded Method of Manufacture, PVC, White, 4 in H Dimensions, Domestic/Import: Domestic
Spears® SCH 40/STD PVC fitting designs combine years of proven experience with computer generated stress analysis to yield the optimum physical structure and performance for each fitting. Material reinforcement is uniformly placed in stress concentration areas for substantially improved pressure handling capability. Resulting products are subjected to numerous verification tests to assure the very best PVC fittings available.
Specifications
| Color | White |
| Dimensions | 4 in H |
| Domestic/Import | Domestic |
| End Style | Socket x FNPT |
| Fitting/Connector Type | Adapter |
| Length | 3-1/2 in |
| Material | PVC |
| Method of Manufacture | Molded |
| Nominal Size | 3 in |
| Schedule Rating | SCH 40/STD |
| Type | Standard |
Country of Origin: United States
Standards and Approvals: ASTM D1784, ASTM D2466, NSF Approved
Features
- Exceptional chemical and corrosion resistance
- High temperature ratings
- Lower installation costs
- Higher flow capacity
- Additional fabricated configurations through 36 in
- Advanced design specialty fittings
