Weldbend® Weldbend® 110-030-000 Raised Face Slip-On Flange, 3 in, Forged Carbon Steel, 150 lb, Domestic
Weldbend® Weldbend® 110-030-000 Raised Face Slip-On Flange, 3 in, Forged Carbon Steel, 150 lb, Domestic
SKU: 7553
Manufacturer Part Number: 110-030-000
Brand: Weldbend®
Description
Specifications

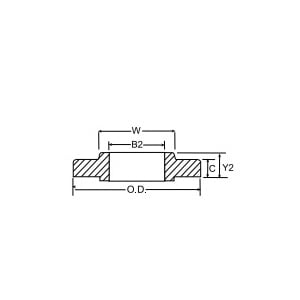

| Bolt Circle Diameter | 6 in |
| Bolt Hole Size | 3/4 in |
| Domestic/Import | Domestic |
| Hub Diameter | 4-1/4 in |
| Inside Diameter | 3.57 in |
| Length Through Hub | 1.12 in |
| Material | Forged Carbon Steel |
| Nominal Size | 3 in |
| Number of Bolt Holes | 4 |
| Outside Diameter | 7-1/2 in |
| Pressure Class | 150 lb |
| Pressure Rating | 285 psig |
| Temperature Rating | -20 to 100 deg F |
| Thickness | 0.88 in |
| Type | Raised Face |
Warranty: 1 Year Limited
Country of Origin: United States
Standards and Approvals: ASME SA105/B16.5, ASTM A105
Features
- Class 150 flanges do not have a counter bore
