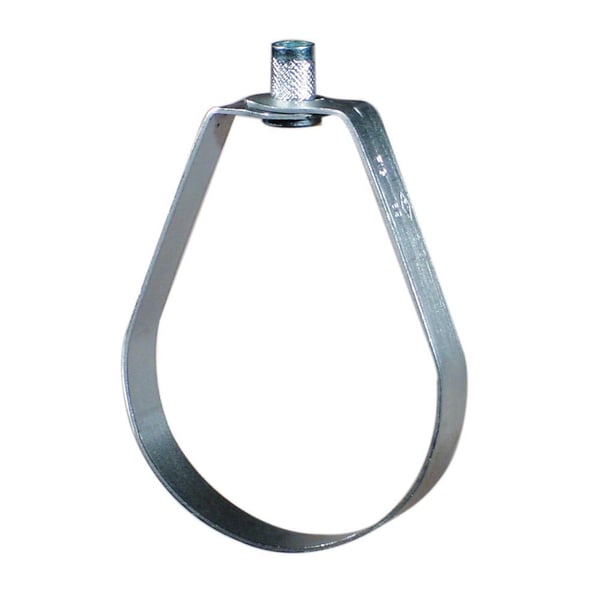

Anvil® 0500301775 FIG 69 Adjustable Swivel Ring, 3 in Pipe, 525 lb Load, 3/8 in Rod, Carbon Steel, Pre-Galvanized Zinc, Domestic
Anvil® 0500301775 FIG 69 Adjustable Swivel Ring, 3 in Pipe, 525 lb Load, 3/8 in Rod, Carbon Steel, Pre-Galvanized Zinc, Domestic
SKU: 7562
Manufacturer Part Number: 0500301775
UPC: 690291143861
Description
Specifications
| Domestic/Import | Domestic |
| Finish | Pre-Galvanized Zinc |
| Load Capacity | 525 lb |
| Material | Carbon Steel |
| Pipe Size | 3 in |
| Rod Size | 3/8 in |
| Series | FIG 69 |
| Temperature Rating | 450 deg F |
| Type | Adjustable |
Country of Origin: United States
Standards and Approvals: ANSI/MSS SP-69/SP-58, cULus Listed, FM Approved
Features
- Knurled swivel nut provides vertical adjustment after piping is in place.
- Threads are countersunk so that they cannot become burred or damaged
- Knurled swivel nut provides vertical adjustment after piping is in place
- Captured swivel nut in the 1/2 through 6 in sizes
- The capture is permanent in the bottom portion of the band, allowing the hanger to be opened during installation if desired, but not allowing the nut to fall completely out
- Pre-galvanized zinc strap
- Zinc plated nut
- 3/4 in W
