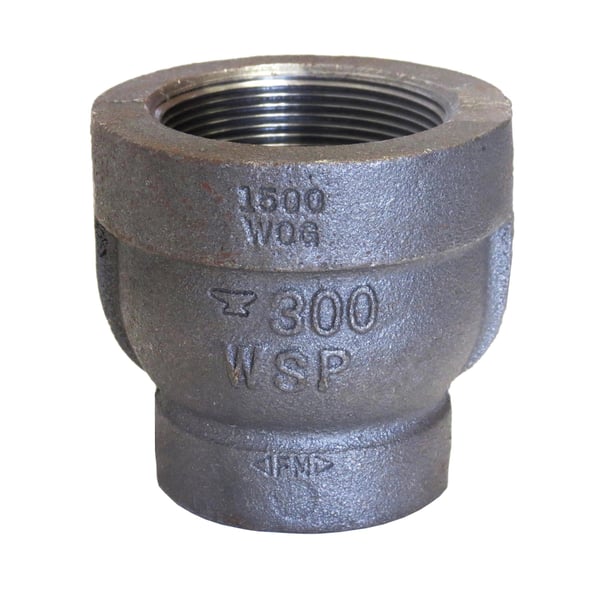

Anvil® 0310546205 FIG 1167 Pipe Reducer, 3 x 2 in Nominal, FNPT End Style, 300 lb, Malleable Iron, Black Oxide, Domestic


Description

Anvil® Pipe Reducer, Series: FIG 1167, Reducing Coupling Fitting/Connector, 3 x 2 in Nominal, FNPT End Style, 4-1/16 in Length, SCH 80/XS, SCH 80/XH Schedule, 300 lb Pressure Class, 1000 psi Pressure, Malleable Iron, Black Oxide, -20 to 150 deg F, Domestic

Anvil International offers the broadest line of malleable iron fitting sizes in both black and galvanized finishes. Every fitting is manufactured and tested to meet Anvil's strict quality standards. All Anvil Class 300 Malleable Iron Fittings conform to ASME B16.3 and unions conform to ASME B16.39. All elbows and tees 3/8" (10 DN) and larger are 100% gas tested at a minimum of 100 PSI. (6.9 bar).

Specifications

Domestic/Import Domestic
End Style FNPT
Finish Black Oxide
Fitting/Connector Type Reducing Coupling
Length 4-1/16 in
Material Malleable Iron
Nominal Size 3 x 2 in
Pressure Class 300 lb
Pressure Rating 1000 psi
Schedule Rating SCH 80/XS, SCH 80/XH
Series FIG 1167
Temperature Rating -20 to 150 deg F

Country of Origin: United States

Standards and Approvals: ASME B16.3, cULus Listed, FM Approved, NSF/ANSI 61

Features

  • Malleable iron pipe fittings hold two different pipe parts together and direct gas and liquid movement.
