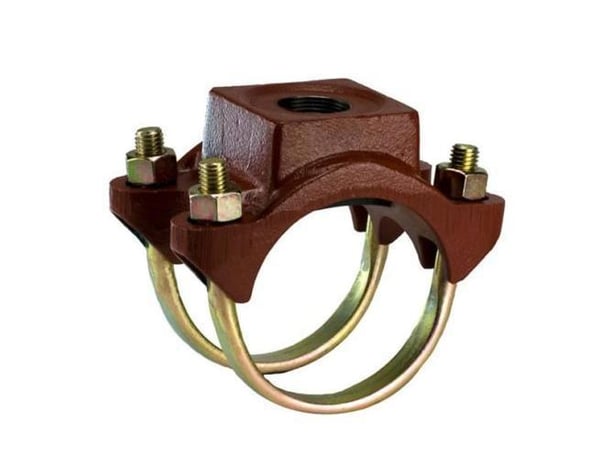

JCM Industries 402-0350X14IP Double Strap Service Saddle Clamp, 3 in Nominal, Threaded Connection, 3.25 to 3.50 in Dia Hole, Ductile Iron Clamp
JCM Industries 402-0350X14IP Double Strap Service Saddle Clamp, 3 in Nominal, Threaded Connection, 3.25 to 3.50 in Dia Hole, Ductile Iron Clamp
SKU: 8036
Manufacturer Part Number: 402-0350X14IP
UPC: 067039717399
Brand: JCM Industries
Description
Specifications
| Bolt Material | Stainless Steel |
| Clamp Material | Ductile Iron |
| Connection Type | Threaded |
| Gasket Material | Nitrile Butadiene Rubber |
| Hole Diameter | 3.25 to 3.50 in |
| Pressure Rating | 250 psi |
| Temperature Rating | -40 to 212 deg F |
| Type | Double Strap |
Standards and Approvals: ANSI Specified/ASTM Specified/NSF Approved
Features
- Pressure activated hydromechanical gasket set in retaining cavity which traps the gasket internally and externally
- Corrosion Resistant Shopcoat Primer
- Wide body with wrap around design reinforces the pipe and provides stability
- Closed Canted Ears - for extra protection against electrolysis
