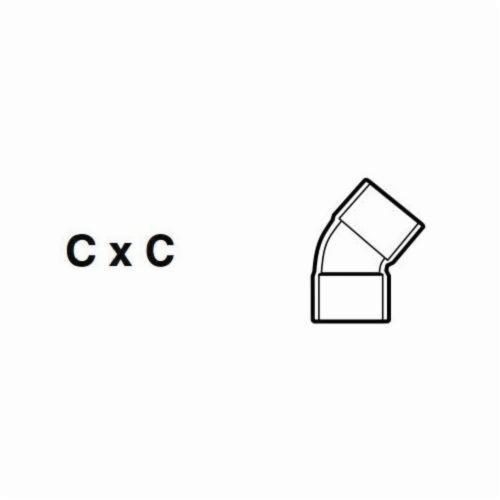

Streamline® Streamline® WB03026 WE-504 45 deg Pipe Elbow, 1/2 in Nominal, Solder End Style, Wrot Copper, Domestic


Description

Streamline® Pipe Elbow, Series: WE-504, Fitting/Connector: 45 deg Elbow, 1/2 in Nominal, Solder, Wrot Copper, 5/8 in OD, Domestic

Streamline® Wrot Copper Pressure and DWV fittings for use in plumbing or mechanical applications. Available sizes ranging from 1/4 inch to 8 inch in diameter, all wrot copper solder joint fittings shall be manufactured in the United States. Product is designed to join ASTM B88 and ASTM B280 Seamless Copper Tube.

Specifications

Dimensions 5/8 in OD
Domestic/Import Domestic
End Style Solder
Fitting/Connector Type 45 deg Elbow
Material Wrot Copper
Nominal Size 1/2 in
Series WE-504

Country of Origin: United States

Standards and Approvals: ASME B16.22/B16.29/B1.20.1, ANSI 61 Annex G, ASTM B88/B75/B280, MSS SP104, NSF Approved, UNS C12200

Features

  • Streamline® wrot copper fittings shall be made from material in compliance with ASTM B75 and of UNS C12200 grade of copper
  • Streamline® wrot copper, solder joint, pressure fittings shall conform to the NSF/ANSI 61 annex G requirements
  • Wrot copper pressure fittings shall be manufactured to meet ASME B16.22 and MSS SP104
  • Wrot DWV copper fittings shall be made to meet ASME B16.29
  • All threaded fittings conform to ASME B1.20.1
  • Installations shall comply with the latest applicable building codes for the local jurisdiction
