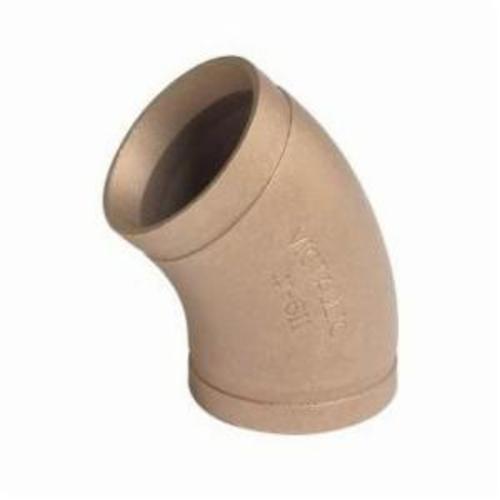

Victaulic® F040611C0C Tube 45 deg Elbow, 4 in, Grooved, Wrot Copper


Description

Victaulic® Tube Elbow, Series: 611, Fitting/Connector Type: 45 deg Elbow, 4 Nominal, Grooved, 300, Wrot Copper

Full flow, standard radius pipe fittings for copper tube supplied roll grooved and ready for installation into copper systems using either a Style 607 grooved couplings or Style 641 Vic-Flange adapter. Working pressures shown are based on the heaviest wall copper tubing for each standard.

Specifications

End Style Grooved
Fitting/Connector Type 45 deg Elbow
Material Wrot Copper
Nominal Size 4 in
Pressure Rating 300 psi
Series 611

Standards and Approvals: ASTM B75 C12200 or ASTM B152 C110001, ANSI/NSF 61/372, FM Approved, UL/cULus Listed

Application:
Potable Water Systems, Storm Water and Roof Drain Systems, Vacuum Plumbing Systems, Drain, Waste and Vent Systems, Heating Water Systems, Condenser Water Systems, Chilled Water Systems and Hydrant Systems

Features

  • Fitting pressure ratings are equivalent to the pressure ratings of the joints consisting of a coupling/Vic-Flange adapter and type of copper tubing
  • Accommodates pressures ranging from full vacuum (29.9 in Hg/760 mm Hg) up to 300 psi/2100 kPa
  • Connects pipe, provides change in direction and adapts sizes or components
  • Full flow, standard radius wrot copper supplied roll grooved or bronze castings with as castCTS grooves
  • Exclusively for use with Victaulic style 607 QuickVic® rigid couplings or Victaulic style 641 Vic-Flange adapter for copper
