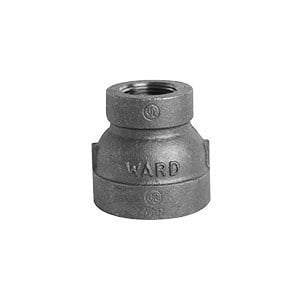

Ward Mfg 4X2D.NMC Reducing Coupling, 4 x 2-1/2 in Nominal, NPS End Style, 150 lb, Malleable Iron, Galvanized, Domestic


Description

Ward Mfg Reducing Coupling, Reducing Coupling Fitting/Connector, 4 x 2-1/2 in Nominal, NPS End Style, 4.38 in Length, 150 lb Pressure Class, Malleable Iron, Galvanized, Domestic

Specifications

Domestic/Import Domestic
End Style NPS
Finish Galvanized
Fitting/Connector Type Reducing Coupling
Length 4.38 in
Material Malleable Iron
Nominal Size 4 x 2-1/2 in
Pressure Class 150 lb

Country of Origin: United States

Standards and Approvals: AB-1953, ASME B16.3 Dimension, ASME B1.20.1 Thread, ASTM A197 Malleable Iron, Federal Spec WW-P-521

Features

  • Wide range of products for sprinkler systems, drainage systems other installations, including fittings, connectors, unions, plugs and bushings, clamps and more
  • Accurate form, length and straightness on threads for easy engagement
  • Chamfered openings for fast, easy engagement and assembly
  • 1.08 in L thread (large end), 0.92 in L thread (small end)
  • 5.4 in OD (large end band), 3.59 in OD (small end band)
  • 0.89 x 1.05 in take out
