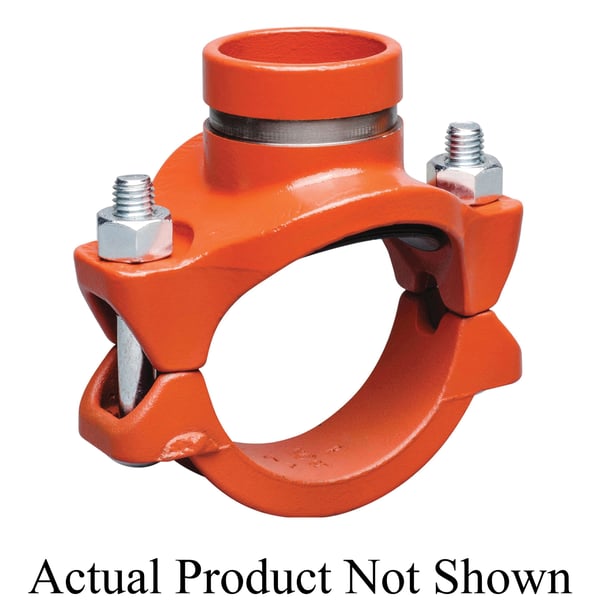

Victaulic® Victaulic® Mechanical-T® CD44920PE0 920 Bolted Branch Outlet, 4 x 3 in Nominal, FNPT Connection, 3-1/2 in Dia Hole, Ductile Iron Clamp, Enamel Painted, Domestic


Description

Victaulic® Mechanical-T® Bolted Branch Outlet, Series: 920, 4 x 3 in Nominal, FNPT Connection, 3-1/2 in Diameter Hole, 500 psi Pressure, -30 to 230 deg F, Carbon Steel Bolt, Ductile Iron Clamp, Grade E EPDM Gasket, 7.73 in L x 5.12 in W, Orange, Enamel Painted, Domestic

Victaulic Mechanical-T® Outlet provides a direct branch connection at any location a hole can be cut in pipe. The hole is cut oversize to receive a "holefinder" locating collar which secures the outlet in position permanently. A pressure responsive gasket seals on the pipe O.D.

Specifications

Bolt Material Carbon Steel
Clamp Material Ductile Iron
Color Orange
Connection Type FNPT
Dimensions 7.73 in L x 5.12 in W
Domestic/Import Domestic
Finish Enamel Painted
Gasket Material Grade E EPDM
Hole Diameter 3-1/2 in
Nominal Size 4 x 3 in
Pressure Rating 500 psi
Series 920
Temperature Rating -30 to 230 deg F

Country of Origin: United States

Standards and Approvals: ANSI/NSF 61 Gasket, ASTM A-536 Grade 65-45-12, ASTM A-449/A-183 Bolts/Nuts, FM Approved, LPCB Approved, UL Listed, ULC Listed

Application:
Cold or Hot Water Service, Dilute Acids, Oil-Free Air and Chemical Services, For SCH10 or SCH 40/STD carbon steel pipe

Features

  • Provides a direct branch connection at any location where a hole can be cut in the pipe
