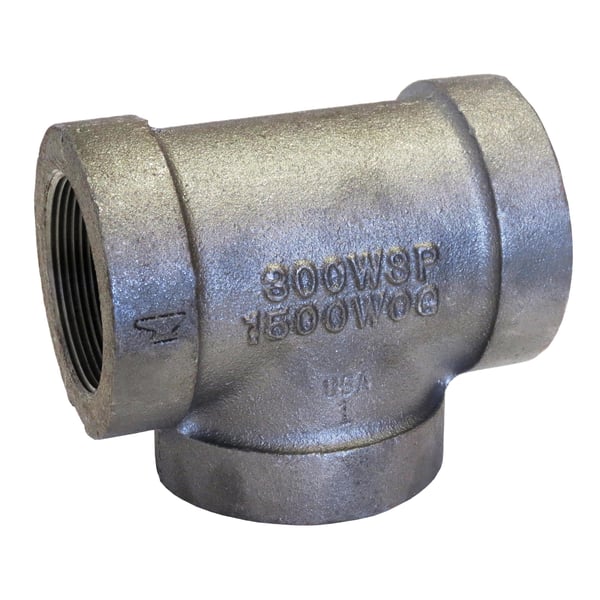

Anvil® 0310517800 FIG 1164 Straight Pipe Tee, 4 in Nominal, FNPT End Style, 300 lb, Malleable Iron, Black Oxide, Domestic


Description

Anvil® Straight Pipe Tee, Series: FIG 1164, Fitting/Connector Type: Tee, 4 in Nominal, FNPT, SCH 80/XH, 300 lb, 300 psi, Malleable Iron, Black Oxide, -20 to 150 deg F, Domestic

Anvil International offers the broadest line of malleable iron fitting sizes in both black and galvanized finishes. Every fitting is manufactured and tested to meet Anvil's strict quality standards. All Anvil Class 300 Malleable Iron Fittings conform to ASME B16.3 and unions conform to ASME B16.39. All elbows and tees 3/8 in (10 DN) and larger are 100% gas tested at a minimum of 100 PSI. (6.9 bar).

Specifications

Domestic/Import Domestic
End Style FNPT
Finish Black Oxide
Fitting/Connector Type Tee
Material Malleable Iron
Nominal Size 4 in
Pressure Class 300 lb
Pressure Rating 300 psi
Schedule Rating SCH 80/XH
Series FIG 1164
Temperature Rating -20 to 150 deg F

Country of Origin: United States

Standards and Approvals: ASME B16.3/B1.20.1, cULus Listed, FM Approved, NSF/ANSI 61

Features

  • Malleable iron pipe fittings hold two different pipe parts together and direct gas and liquid movement.
