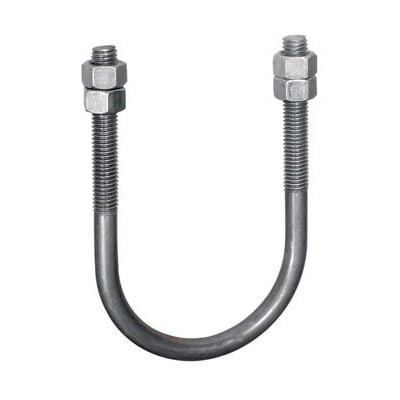

Anvil® Anvil® 0500017124 FIG 137 Standard U-Bolt, 6 in Pipe, 5/8 in, Black, Carbon Steel


Description

Anvil® U-Bolt, Standard, Series: FIG 137, Measurement System: Imperial, 5/8 in, 6-3/4 in Inside Width, Carbon Steel, 3-1/2 in Thread Length, Black, 6 in Pipe, 4320 lb Tensile

Specifications

Diameter - Thread Size 5/8 in
Finish Black
Inside Width 6-3/4 in
Material Carbon Steel
Measurement System Imperial
Pipe Size 6 in
Series FIG 137
Tensile Strength 4320 lb
Thread Length 3-1/2 in
Type Standard

Includes: (4) 5/8 in Hex Nuts

Country of Origin: United States

Standards and Approvals: ANSI/MSS SP-69/SP-58 (Type 24), Federal Specification A-A-1192A (Type 24), WW-H-171-E (Type 24)

Features

  • Recommended for support, or guide of heavy loads; often employed in power, process plant and marine service.
  • For support or guide of heavy loads often employed in power, process plant and marine service
  • 1080 lb side load at 650 deg F
  • 4320 lb normal load at 650 deg F, 3382 lb normal load at 750 deg F
