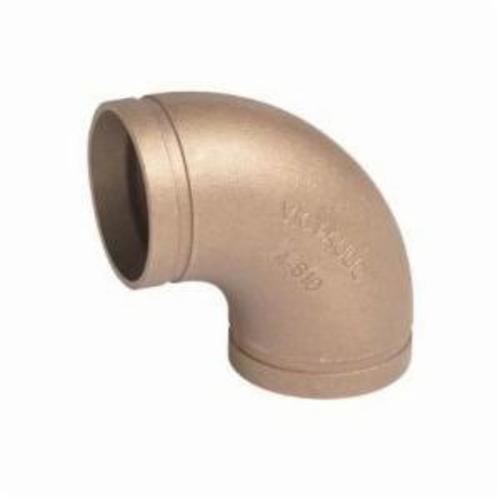

Victaulic® Victaulic® F060610C0C Tube 95 deg Elbow, 6 in, Grooved, Wrot Copper


Description

Victaulic® Tube Elbow, Series: 610, Fitting/Connector Type: 90 deg Elbow, 6 Nominal, Grooved, 300, Wrot Copper

Full flow, standard radius pipe fittings for copper tube supplied roll grooved and ready for installation into copper systems using either Style 607 grooved couplings or Style 641 Vic-Flange adapter. Working pressures shown are based on the heaviest wall copper tubing for each standard.

Specifications

End Style Grooved
Fitting/Connector Type 90 deg Elbow
Material Wrot Copper
Nominal Size 6 in
Pressure Rating 300 psi
Series 610

Standards and Approvals: ASTM B75 C12200 or ASTM B152 C110001, ANSI/NSF 61, 372, FM Approved, UL/cULus Listed

Application:
Potable Water Systems, Storm Water and Roof Drain Systems, Vacuum Plumbing Systems, Drain, Waste and Vent Systems, Heating Water Systems, Condenser Water Systems, Chilled Water Systems and Hydrant Systems

Features

  • Fitting pressure ratings are equivalent to the pressure ratings of the joints consisting of a coupling/Vic-Flange adapter and type of copper tubing
  • Accommodates pressures ranging from full vacuum (29.9 in Hg/760 mm Hg) up to 300 psi/2100 kPa
  • Connects pipe, provides change in direction and adapts sizes or components
  • Full flow, standard radius wrot copper supplied roll grooved or bronze castings with as castCTS grooves
  • Exclusively for use with Victaulic style 607 QuickVic® rigid couplings or Victaulic style 641 Vic-Flange adapter for copper
