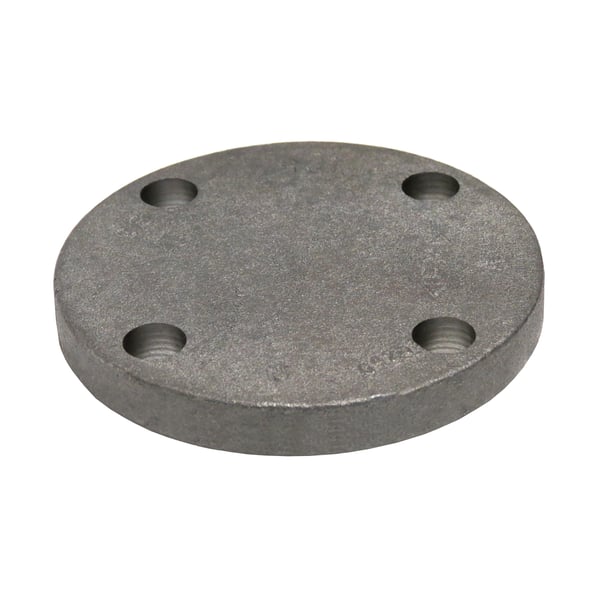

Anvil® 0308017201 FIG 1018 Blind Flange, 6 in Nominal, Cast Iron, 125 lb, Domestic


Description

Anvil® Blind Flange, Series: FIG 1018, 6 in Nominal, 1 in Thickness, 11 in Outside Dia, 200 psi, 125 lb, SCH 40/STD, -20 to 450 deg F, Cast Iron, Black Oxide, Domestic

Class 125 (standard) iron flanges are manufactured to American National Standard ASME B16.1 except as noted. Class 125 iron flanges are available in both black painted and galvanized.

Specifications

Domestic/Import Domestic
Finish Black Oxide
Material Cast Iron
Nominal Size 6 in
Outside Diameter 11 in
Pressure Class 125 lb
Pressure Rating 200 psi
Schedule Rating SCH 40/STD
Series FIG 1018
Temperature Rating -20 to 450 deg F
Thickness 1 in

Country of Origin: United States

Standards and Approvals: ASTM A126, cULus Listed, FM Approved

Features

  • Blind flanges allow the user to cap the end of a flanged line
