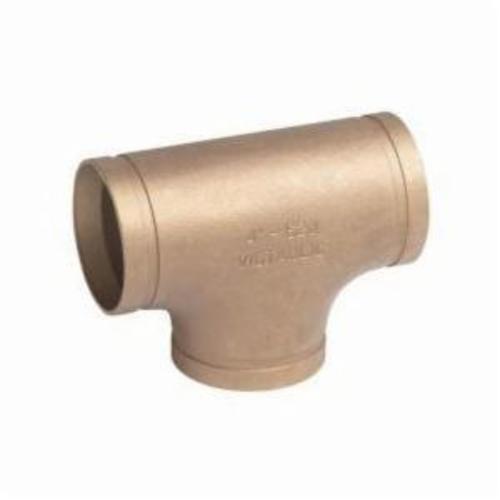

Victaulic® F080620C0C Tube Tee, 8 in, Grooved, Wrot Copper


Description

Victaulic® Tube Tee, Series: 620, Fitting/Connector Type: Tee, 8 Nominal, Grooved, 300, Wrot Copper

Full flow, standard radius pipe fittings supplied roll grooved and ready for installation into copper systems using either a Style 606 grooved fittings or Style 641 Vic-Flange adapter. Working pressures shown are based on the heaviest wall copper tubing for each standard.

Specifications

End Style Grooved
Fitting/Connector Type Tee
Material Wrot Copper
Nominal Size 8 in
Pressure Rating 300 psi
Series 620

Standards and Approvals: ASTM B75 C12200 or ASTM B152 C110001, ANSI B-16.22, ANSI/NSF 61/372, FM Approved, UL/cULus Listed

Application:
For Use With Potable Water Systems, Storm Water and Roof Drain Systems, Vacuum Plumbing Systems, Drain, Waste and Vent Systems, Heating Water Systems, Condenser Water Systems, Chilled Water Systems and Hydrant Systems

Features

  • Full-flow, standard radius copper fittings are supplied as either roll grooved wrought copper or bronze fittings
  • Fitting pressure ratings equivalent to the pressure ratings of the joints consisting of a Style 607 coupling, Style 606 coupling or Style 641 flange adapter and Type of copper tubing
