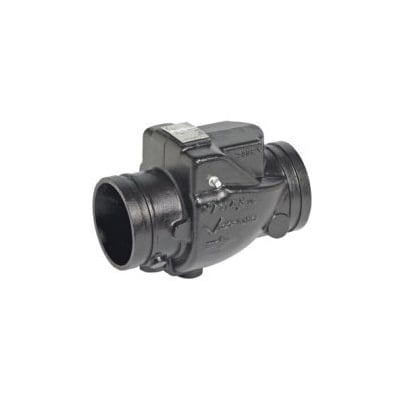

Victaulic® Vic-Check® V080716PE0 716 Check Valve, 8 in, Grooved, Ductile Iron Body


Description

Victaulic® Vic-Check® Check Valve, Series: 716, 8 in Nominal Size, Grooved, 300 psi, -30 to 230 deg F, 14 in Inlet to Outlet Length, Ductile Iron Body, Ductile Iron Seat/Ductile Iron Disc/Stainless Steel Spring Trim, 9.88 in H

Vic-Check valves combine high pressure capabilities with low pressure drop performance. The grooved end design permits fast, easy installation. Drains are provided both upstream and downstream of the disc.

Specifications

Body Material Ductile Iron
Dimensions 9.88 in H
End Style Grooved
Inlet to Outlet Length 14 in
Nominal Size 8 in
Pressure Rating 300 psi
Series 716
Temperature Rating -30 to 230 deg F
Trim Material Ductile Iron Seat/Ductile Iron Disc/Stainless Steel Spring

Standards and Approvals: ASTM A536 Grade 65-45-12 Body, ASTM B733 Seat, ASTM A536 Grade 65-45-12 Disc

Features

  • Connects tubing provides change in direction and adapts sizes or components
