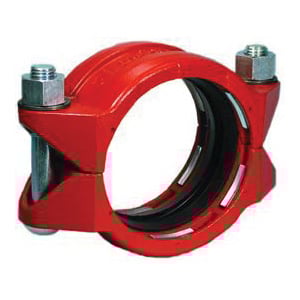

Victaulic® Roust-A-Bout® L080099PE0 99 Series Plain End Coupling, 8 in Nominal, Plain End Style, Ductile Iron, Orange Enamel


Description

Victaulic® Roust-A-Bout® Plain End Coupling, Series: 99 Series, Fitting/Connector Type: Coupling, 8 in Nominal, Plain, 14.38 in Length, 250 psi, Ductile Iron, Orange Enamel, 8-5/8 in OD x 5 in W

Style 99 Roust-A-Bout couplings are designed with heavy housings and grips to provide a strong component for joining plain and beveled end, including Schedule 80 steel pipe and Victaulic plain end fittings. Roust-A-Bout couplings are not designed for use on plastic pipe, pipe with brittle linings, cast or ductile iron pipe nor any pipe with a surface hardness greater than 150 Brinell. Pipe is secured together by heavy jaws, which are set into the housing. All sizes are supplied with painted housings and plated nuts and bolts. Galvanized housings are available.

Specifications

Dimensions 8-5/8 in OD x 5 in W
End Style Plain
Finish Orange Enamel
Fitting/Connector Type Coupling
Length 14.38 in
Material Ductile Iron
Nominal Size 8 in
Pressure Rating 250 psi
Series 99 Series

Standards and Approvals: ASTM A536 Grade 65-45-12, UL/cUL Listed

Features

  • EPDM gasket
  • Carbon steel bolts/nuts
