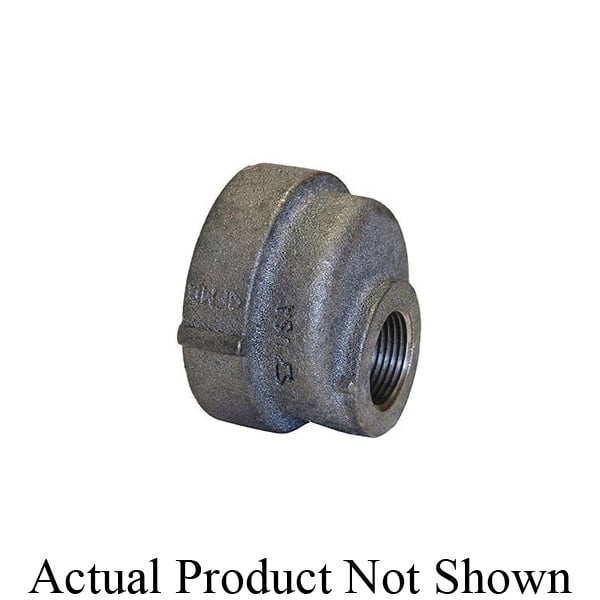

Anvil® 0300154200 FIG 368 Standard Eccentric Reducer, Reducer, 1-1/2 x 1/2 in Nominal, FNPT End Style, 125 lb, Cast Iron, Black Oxide, Domestic


Description

Anvil®, 0300154200, Eccentric Reducer, Standard, Series: FIG 368, Fitting/Connector: Reducer, 1-1/2 x 1/2 in Nominal, FNPT End Style, 1-3/4 in Length, SCH 40/STD Schedule, 125 lb Pressure Class, 175 psi Pressure, Cast Iron, Black Oxide, -20 to 150 deg F, Domestic

Anvil® standard and extra heavy cast iron threaded fittings are manufactured in accordance with ASME-B16.4. Dimensions also conform to Federal Specifications, WW-P-501.

Specifications

Domestic/Import Domestic
End Style FNPT
Finish Black Oxide
Fitting/Connector Type Reducer
Length 1-3/4 in
Material Cast Iron
Nominal Size 1-1/2 x 1/2 in
Pressure Class 125 lb
Pressure Rating 175 psi
Schedule Rating SCH 40/STD
Series FIG 368
Temperature Rating -20 to 150 deg F
Type Standard

Country of Origin: United States

Standards and Approvals: ASTM A-126 (A), ASME B16.4 Pressure Rating, ASME B1.20.1-NPT, cULus Listed, FM Approved, Federal Specifications WW-P-501

Features

  • Anvil standard and extra heavy cast iron threaded fittings are manufactured in accordance with ASME-B16.4 (except plugs and bushings, ASME B16.14).
