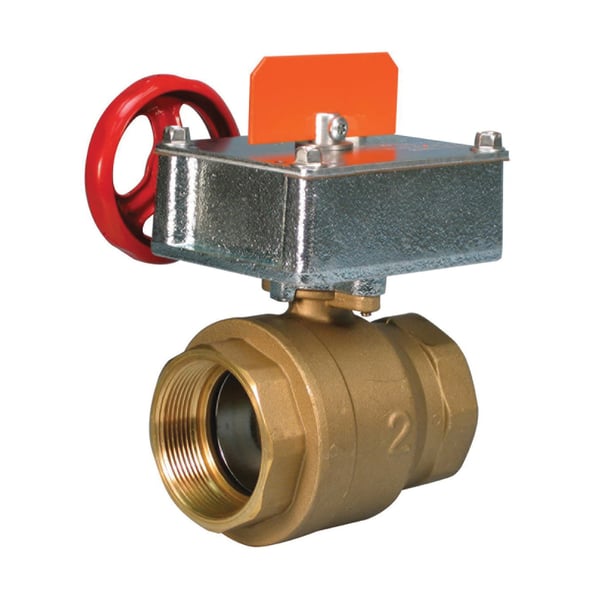

Victaulic® FireLock® V020728CT0 728 Ball Valve, 2 in Nominal, Thread End Style, Brass Body, Standard Port


Description

Victaulic® FireLock® Ball Valve, Series: 728, 2 in Nominal, Thread End Style, 365 psi Pressure, Standard Port, Handwheel Actuator, Brass Ball, 4.33 in Inlet to Outlet Length, Brass Body, 316 Stainless Steel Stem and Carbon Filled TFE Seat Trim, 5.49 in H Dimensions

The Series 728 FireLock valve is a full port, ball valve that is UL/FM rated for 365 psi/25 BAR service in all sizes (LPCB and VdS listed for 20 BAR services). Available with grooved or threaded ends (NPT), the valve body is brass. The ball is chrome plated brass with a stainless steel stem. Reinforced seats aid ease of operation and provide a durable, corrosion-free seat. Flow characteristics exceed UL Specification 1091 and FM Approval Standard 1112. The valve is approved for indoor and outdoor use.

Specifications

Actuator Type Handwheel
Ball Material Brass
Body Material Brass
Dimensions 5.49 in H
End Style Thread
Inlet to Outlet Length 4.33 in
Nominal Size 2 in
Port Type Standard
Pressure Rating 365 psi
Series 728
Trim Material 316 Stainless Steel Stem and Carbon Filled TFE Seat

Standards and Approvals: Brass ASTM B124 Body, cULus Listed, FM Approved, LPCB Approved, VdS Approved

Features

  • Available with grooved or female threaded ends
