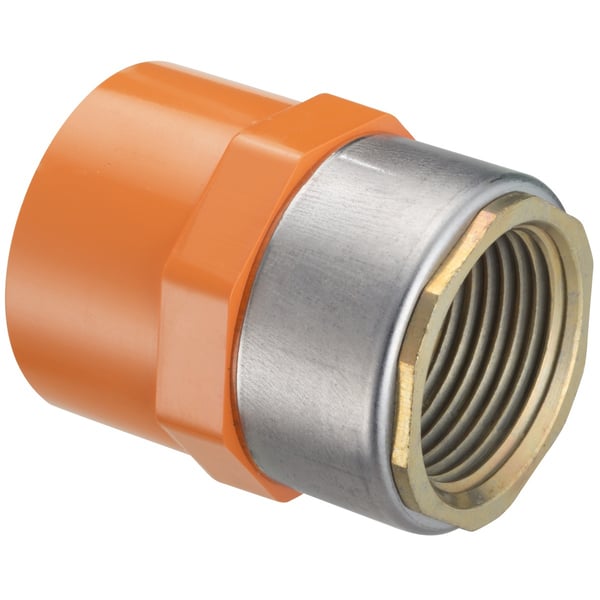

Spears® FlameGuard® 4235-010 Standard Adapter, 1 in, Socket x Brass FNPT, CPVC, Domestic


Description

Spears® FlameGuard® Adapter, Standard, Fitting/Connector Type: Adapter, 1 in Nominal, Socket x Brass FNPT, 2-3/16 in Length, 175 psi, Molded, CPVC, Orange, 150 deg F, 1-3/4 in W, Domestic

Spears® Patented Special Reinforced (SR) plastic female thread design is one of the most significant advancements in the use of CPVC Fire Sprinkler System threaded fittings. Not just an added ring, this unique precompression design compensates for expansion forces generated from tapered pipe thread joint make-up. Radial stress is no longer a problem in normal installations and easily managed in severe over-tightening situations.

Specifications

Color Orange
Dimensions 1-3/4 in W
Domestic/Import Domestic
End Style Socket x Brass FNPT
Fitting/Connector Type Adapter
Length 2-3/16 in
Material CPVC
Method of Manufacture Molded
Nominal Size 1 in
Pressure Rating 175 psi
Temperature Rating 150 deg F
Type Standard

Country of Origin: United States

Standards and Approvals: ASTM D-1784/F-438/F-439, NFPA 13/13D/13R, UL Listed
