Victaulic® Vic-Flange® L024743PE0 Adapter, 2-1/2 in Nominal, Flanged x Groove End Style, 720 psi Pressure, 300 lb, Ductile Iron


Description

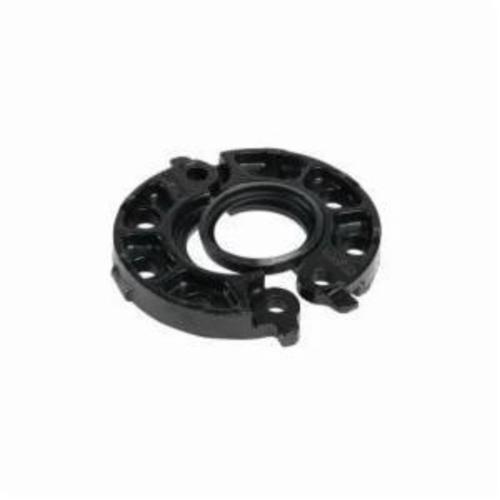

Victaulic® Vic-Flange® Adapter, Series: 743, 2-1/2 in Nominal, Flanged x Groove, 8.61 in Length, 1.06 in Thickness, 300 lb, 720 psi, Ductile Iron, Enamel Painted

Vic-Flange® Style 743 flange-to-groove adapter permits direct connection of ANSI Class 300 flanged components into a grooved system. The two-piece, hinged housing engages into the pipe groove and bolts directly to any standard flanged component. The conventional bolt hole pattern allows for easy, fast assembly. Style 743 rotates 360 deg for proper alignment of bolt holes before tightening. Vic-Flange® gaskets utilize the Victaulic pressure responsive design, sealing on the pipe end and directly to the opposing flange face. No standard flange gasket is required. Style 743 is designed to mate with raised-face flanges, but can be used with flat-face flanges by removing the raised projections on the outside face of the flange.

Specifications

End Style Flanged x Groove
Finish Enamel Painted
Length 8.61 in
Material Ductile Iron
Nominal Size 2-1/2 in
Pressure Class 300 lb
Pressure Rating 720 psi
Series 743
Thickness 1.06 in

Standards and Approvals: ANSI A21.10/C606, ASTM A536 Grade 65-45-12, FM Approved, UL Listed

Features

  • ANSI Class 300 flanges
  • Pressures up to 720 psi
