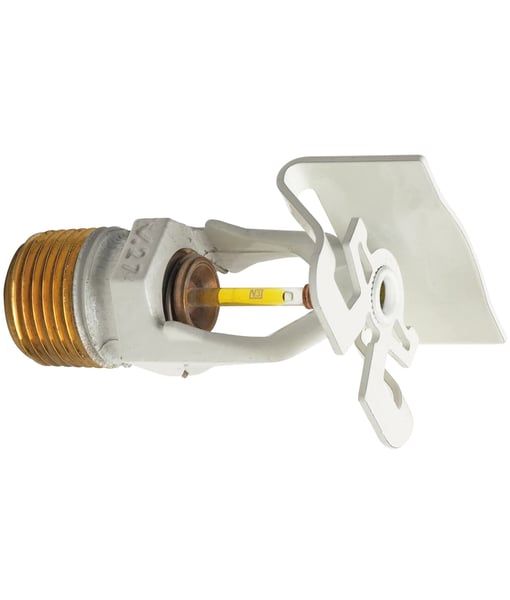

Victaulic® FireLock® S271LCQA41 V2738 Quick Response Recessed Horizontal Sidewall Sprinkler, 175 psi, 2-3/4 in OAL, 1/2 in Thread, 4.2 Nominal K-Factor, NPT Connection


Description

Victaulic® FireLock® Recessed Horizontal Sidewall Sprinkler, Quick Response, Series: V2738, 175 psi, 2-3/4 in Overall Length, 1/2 in, Nominal K-Factor: 4.2, NPT, 155 deg F, White Painted

These Model V2738 residential sprinklers are designed to meet the requirements of the 2002 or later NFPA 13, 13D and 13R for residential use. The Model V2738 is UL Listed for use under smooth flat horizontal ceilings. The design incorporates state of- the-art, heat responsive, frangible glass bulb design (quick response) for prompt, precise operation. The die cast frame is more streamlined and attractive than traditional sand cast frames. It is cast with a hex-shaped wrench boss to allow easy tightening from many angles, reducing assembly effort. This sprinkler is available in various finishes to meet many design requirements.

Specifications

Color White Painted
Connection Type NPT
Nominal K-Factor 4.2
Overall Length 2-3/4 in
Pressure Rating 175 psi
Series V2738
Temperature Rating 155 deg F
Thread Size 1/2 in
Type Quick Response

Standards and Approvals: cULus Listed

Application:
Residential

Features

  • Wrench: V27, V27-2
  • 7/16 in orifice
  • Bronze per UNS C51000 deflector
  • Die cast brass 65-30 frame
