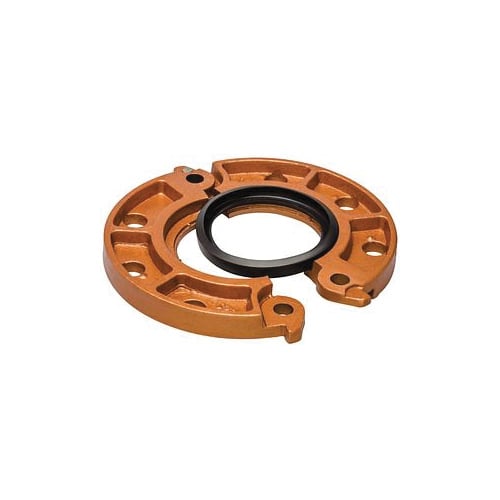

Victaulic® L020641PP0 641 Flanged Adapter, 2 in Nominal, Ductile Iron, 125/150 lb, Domestic


Description

Victaulic® Flanged Adapter, Series: 641, 2 in Nominal, 4 Bolt Holes, 5/8 x 3 in Bolt Hole, 2-1/8 in OD, Up to 300 psi Pressure, 125/150 lb, 0 to 180 deg F, 2.13 in Diameter Hub, Ductile Iron, Domestic

Specifications

Bolt Hole Size 5/8 x 3 in
Domestic/Import Domestic
Hub Diameter 2.13 in
Material Ductile Iron
Nominal Size 2 in
Number of Bolt Holes 4
Outside Diameter 2-1/8 in
Pressure Class 125/150 lb
Pressure Rating Up to 300 psi
Series 641
Temperature Rating 0 to 180 deg F

Includes: (4) Bolts, (4) Nuts and EPDM Gasket

Warranty: 1 year Limited

Country of Origin: United States

Standards and Approvals: cUPC Listed, cULus Listed, NSF/ANSI/CAN 61/372, UL 467

Application:
For use on types K, L, M and DWV copper tubing

Features

  • Designed to transition from flanged to grooved piping systems
