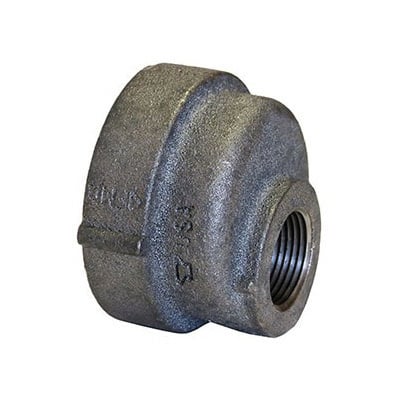

Anvil® Anvil® 0300154408 FIG 368 Eccentric Reducer, 2 x 1-1/2 in Nominal, FNPT End Style, 125 lb, Cast Iron, Black, Domestic


Description

Anvil®, 0300154408, Eccentric Reducer, Series: FIG 368, Fitting/Connector: Reducer, 2 x 1-1/2 in Nominal, FNPT End Style, 7/8 in Length, SCH 40/STD Schedule, 125 lb Pressure Class, 175 psi Pressure, Cast Iron, Black, -20 to 150 deg F, Domestic

Anvil standard and extra heavy cast iron threaded fittings are manufactured in accordance with ASME-B16.4 (except plugs and bushings, ASME B16.14). Dimensions also conform to Federal Specifications, WW-P-501 (except plugs and bushings WW-P-471).

Specifications

Domestic/Import Domestic
End Style FNPT
Finish Black
Fitting/Connector Type Reducer
Length 7/8 in
Material Cast Iron
Nominal Size 2 x 1-1/2 in
Pressure Class 125 lb
Pressure Rating 175 psi
Schedule Rating SCH 40/STD
Series FIG 368
Temperature Rating -20 to 150 deg F

Country of Origin: United States

Standards and Approvals: ASME B16.4/B1.20.1, cULus Listed, FM Approved, ASTM A126

Features

  • Anvil standard and extra heavy cast iron threaded fittings are manufactured in accordance with ASME-B16.4 (except plugs and bushings, ASME B16.14).
