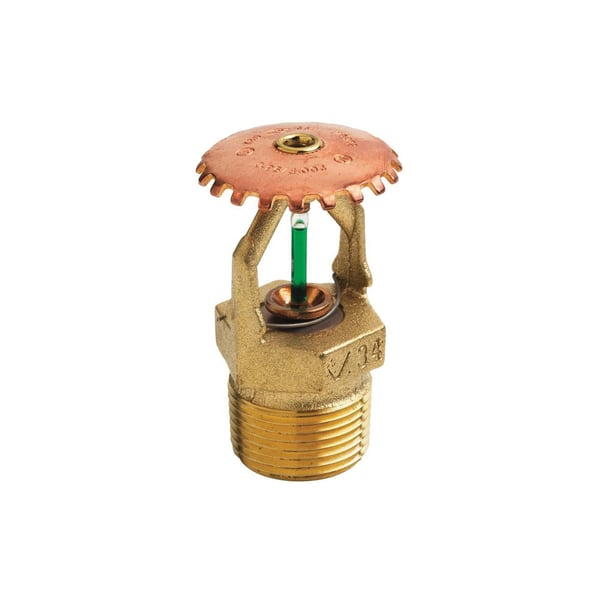

Victaulic® FireLock® S342AFQ510 V3402 Quick Response Upright Sprinkler, 175 psi Pressure, 2-1/2 in OAL, 3/4 in Thread, 8 gpm Nominal K-Factor, NPT Connection


Description

Victaulic® FireLock® Upright Sprinkler, Quick Response, Series: V3402, 175 psi, 2-1/2 in Overall Length, 3/4 in, Nominal K-Factor: 8 gpm, NPT, 200 deg F, Plain Brass

These Model V34 standard spray sprinklers are designed to provide a large discharge capacity in a hemispherical pattern for use in commercial applications. It is cast with a hex-shaped wrench boss to allow easy tightening from many angles, reducing assembly effort. This sprinkler is available in various temperature ratings and finishes to meet many design requirements. The recessed pendent may be utilized with a Model V34 recessed escutcheon which provides up to 3/4 in of adjustments.

Specifications

Color Plain Brass
Connection Type NPT
Nominal K-Factor 8 gpm
Overall Length 2-1/2 in
Pressure Rating 175 psi
Series V3402
Temperature Rating 200 deg F
Thread Size 3/4 in
Type Quick Response

Standards and Approvals: FM Approved, cULus Listed, GOST Standard

Application:
Commercial

Features

  • Wrench: V34
  • 17/32 in orifice
  • Bronze per UNS C11000 upright deflector
  • Die cast brass 65-30 frame
