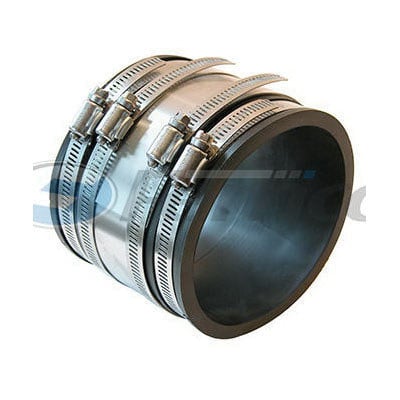

Fernco® 1056-1212RC 1056 RC Strong Back Repair Coupling, 12 in Nominal, Cast Iron/Copper/Lead/Plastic/Steel x Cast Iron/Copper/Lead/Plastic/Steel End Style, 60 Duro Shore A Flexible PVC, Domestic


Description

Fernco® Repair Coupling, Lead Free Strong Back, Series: 1056 RC, Fitting/Connector Type: Coupling, 12 in Nominal, Cast Iron/Copper/Lead/Plastic/Steel x Cast Iron/Copper/Lead/Plastic/Steel, 0.51 in Thickness, 6.32 in Length, 4.3 psi, 60 Duro Shore A Flexible PVC, -30 to 140 deg F, 12.51 in ID x 13.54 in OD, Domestic

Designed for resistance to heavy earth loads and shear forces, while providing improved pipe alignment.

Specifications

Dimensions 12.51 in ID x 13.54 in OD
Domestic/Import Domestic
End Style Cast Iron/Copper/Lead/Plastic/Steel x Cast Iron/Copper/Lead/Plastic/Steel
Fitting/Connector Type Coupling
Length 6.32 in
Material 60 Duro Shore A Flexible PVC
Nominal Size 12 in
Pressure Rating 4.3 psi
Series 1056 RC
Temperature Rating -30 to 140 deg F
Thickness 0.51 in
Type Strong Back

Includes: (2) 212-300 Clamps, (1) SRC-46 Shear Ring, (1) Insert Bushing

Country of Origin: United States

Standards and Approvals: ASTM D5926/C1173, ICC ES® PMG, UPC Listed

Features

  • Strong back RC Couplings offer a 0.012 in stainless steel shield and a molded in bushing
  • 60 in-lb installation torque
  • 300 series clamps used
