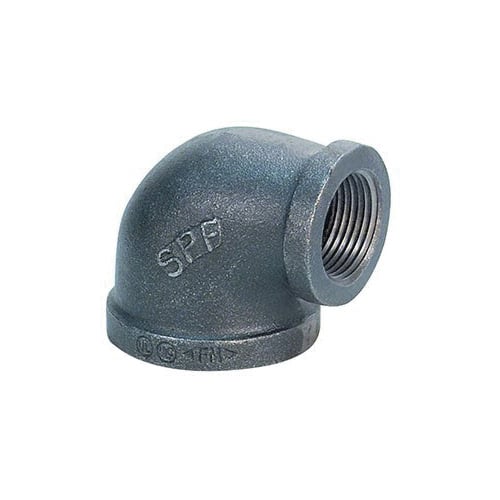

SPF/Anvil™ 0840001127 FIG 3201R 90 deg Reducing Elbow, 2 x 1 in Nominal, Screwed End Style, Ductile Iron, Black


Description

SPF/Anvil™ Reducing Elbow, Series: FIG 3201R, Fitting/Connector: 90 deg Elbow, 2 x 1 in Nominal, Screwed End Style, SCH 40/STD Schedule, 500 psi Pressure, Ductile Iron, Black

SCI ductile iron pipe fittings conform to ASME B16.3 dimensions. Bushings and couplings conform to ASM B16.14. The threads are NPT per ANSI/ASME B1.20.1. Ductile iron is ASTM A536 class 65-45-12. All SCI ductile iron fittings are UL and ULC listed and FM approved.

Specifications

End Style Screwed
Finish Black
Fitting/Connector Type 90 deg Elbow
Material Ductile Iron
Nominal Size 2 x 1 in
Pressure Rating 500 psi
Schedule Rating SCH 40/STD
Series FIG 3201R

Country of Origin: United States

Standards and Approvals: ANSI/ASME B1.20.1, ASME B16.3, ASTM A536 Grade 65-45-12, cULus Listed, FM Approved, UL/ULC Listed

Features

  • Internationally Manufactured Ductile Iron Pipe Fitting.
