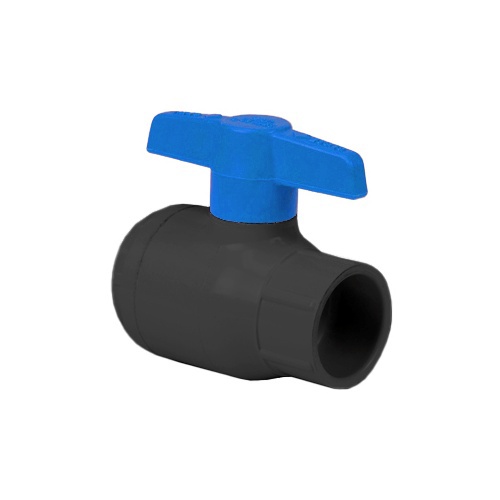

Spears® Spears® 2622-020G Utility Ball Valve, 2 in Nominal, Socket End Style, PVC Body, EPDM Softgoods, Domestic


Description

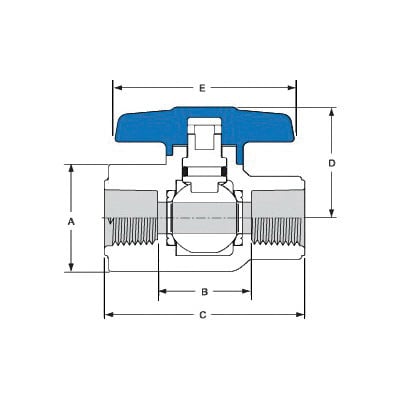

Spears® Utility Ball Valve, 2 in Nominal, Socket, 150 psi, 140 deg F, T-Handle Actuator, PVC Ball, 5-3/16 in Inlet to Outlet Length, 3-7/8 in Top to Inlet Center, PVC Body, PVC Stem Trim, EPDM, Gray, Domestic

A high quality, economical quarter-turn shut-off valve designed for irrigation, pool and spa, and general purpose applications. IPS sizes 1/2 to 2 in available in PVC White, PVC Gray or CPVC with socket or threaded end connectors. Sizes 3 to 4 in available in PVC White with socket or threaded end connectors. 6 in size available in PVC White with socket end connectors and high efficiency lever style handle for easier operation.

Specifications

Actuator Type T-Handle
Ball Material PVC
Body Material PVC
Color Gray
Domestic/Import Domestic
End Style Socket
Inlet to Outlet Length 5-3/16 in
Nominal Size 2 in
Pressure Rating 150 psi
Softgoods Material EPDM
Temperature Rating 140 deg F
Top to Inlet Center 3-7/8 in
Trim Material PVC Stem

Country of Origin: United States

Standards and Approvals: ASTM Specified, NSF Approved

Features

  • PVC white, PVC gray or CPVC construction
  • 1-piece sealed unit
  • Full SCH 80/XH bore
  • High impact polypropylene handle
  • Safe-T-Shear® stem
  • EPDM O-ring
