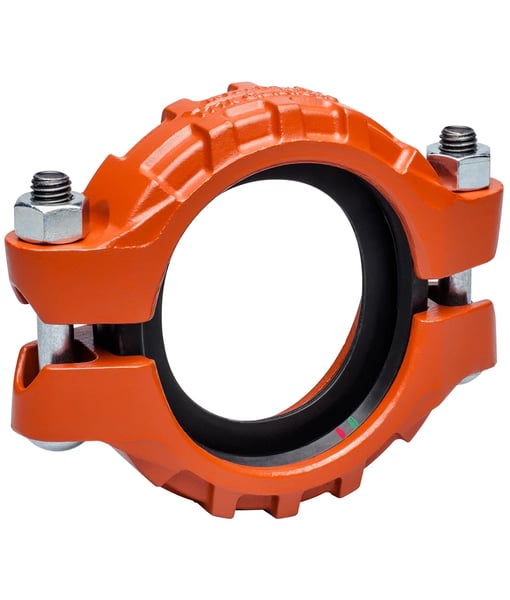

Victaulic® QuickVic™ L020177PEN 177N Flexible Coupling, 2 in Nominal, Grooved End Style, Ductile Iron, Orange Enamel


Description

Victaulic® QuickVic™ Coupling, Flexible, Series: 177N, Fitting/Connector Type: Coupling, 2 in Nominal, Grooved, 6.38 in Length, 1000 psi, Ductile Iron, Orange Enamel, 2.13 in W

The Style 177N QuickVic flexible coupling is Installation-Ready™ and joins 2 to 8 in/50 to 200 mm standard roll grooved and cut grooved steel pipe.

Specifications

Dimensions 2.13 in W
End Style Grooved
Finish Orange Enamel
Fitting/Connector Type Coupling
Length 6.38 in
Material Ductile Iron
Nominal Size 2 in
Pressure Rating 1000 psi
Series 177N
Type Flexible

Standards and Approvals: ASTM A536 Grade 65-45-12, cULus Listed, FM and CTP Approved

Features

  • Accommodates pressures ranging from full vacuum (29.9 in Hg/760 mm Hg) up to 1000 psi/6900 kPa
  • Working pressure dependent on material, wall thickness and size of pipe
  • Features Installation-Ready™ technology
  • Joins roll or cut grooved pipe, grooved fittings, valves, and accessories
  • Provides a flexible pipe joint designed to accommodate a limited amount of linear and/or angular movement
  • Carbon steel bolts/nuts
