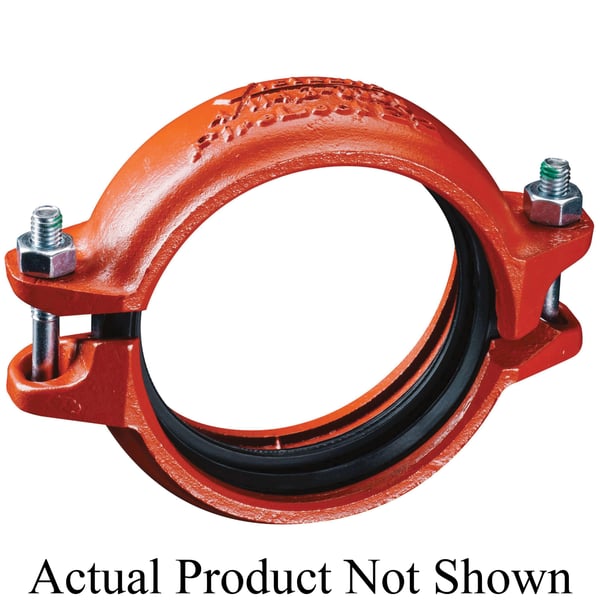

Victaulic® FireLock™ L08009NGE2 009N Rigid Coupling, 8 in Nominal, Grooved End Style, Ductile Iron, Hot Dipped Galvanized


Description

Victaulic® FireLock™ Rigid Coupling, Series: 009N, Fitting/Connector Type: Coupling, 8 in Nominal, Grooved, 2-1/2 in Thickness, 13.13 in Length, 365 psi, Ductile Iron, Hot Dipped Galvanized, -30 to 250 deg F, 8-5/8 in OD

Specifications

Dimensions 8-5/8 in OD
End Style Grooved
Finish Hot Dipped Galvanized
Fitting/Connector Type Coupling
Length 13.13 in
Material Ductile Iron
Nominal Size 8 in
Pressure Rating 365 psi
Series 009N
Temperature Rating -30 to 250 deg F
Thickness 2-1/2 in

Includes: EPDM Rubber Gasket, Carbon Steel Track Bolts and Hex Nuts

Warranty: 1 Year Limited

Standards and Approvals: ASTM A536 Grade 65-45-12, ASTM A449/A563 Grade B/B633 ZN/FE5 Type III Bolts and Nuts, CE EN 10311 Regulation (EU) No. 305/2011, cULus Listed, FM Approved, LPCB Certified, VDS Certified

Application:
For SCH 10, SCH 40/STD or specialty carbon steel pipe

Features

  • Angled bolt pad provides rigidity
  • Grade "E" EPDM (type A) Vic-Plus™ pre-lubricated gasket
