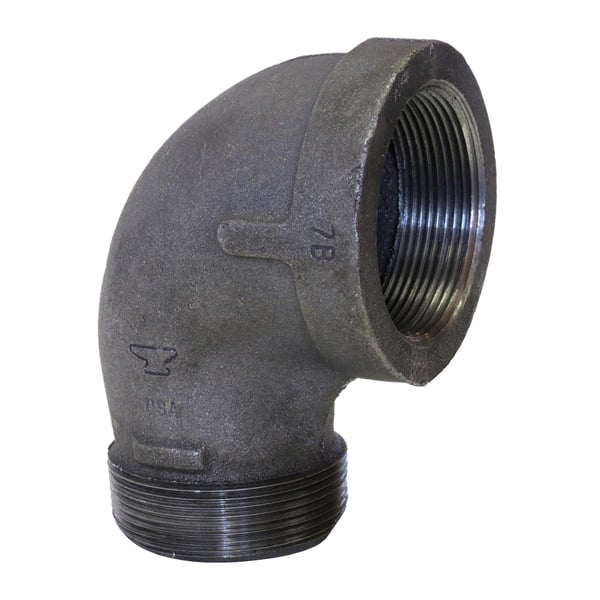

Anvil® 0310017603 FIG 1103 Straight Street Elbow, 3 in Nominal, MNPT x FNPT End Style, 150 lb, Malleable Iron, Black Oxide, Domestic
Anvil® 0310017603 FIG 1103 Straight Street Elbow, 3 in Nominal, MNPT x FNPT End Style, 150 lb, Malleable Iron, Black Oxide, Domestic
SKU: 7297
Manufacturer Part Number: 0310017603
UPC: 690291358432
Description
Specifications
Domestic/Import | Domestic |
End Style | MNPT x FNPT |
Finish | Black Oxide |
Fitting/Connector Type | 90 deg Elbow |
Material | Malleable Iron |
Nominal Size | 3 in |
Pressure Class | 150 lb |
Pressure Rating | 300 psi |
Schedule Rating | SCH 40/STD |
Series | FIG 1103 |
Temperature Rating | -20 to 150 deg F |
Country of Origin: United States
Standards and Approvals: ASME B16.3, cULus Listed, FM Approved, NSF/ANSI 61
Features
- Malleable iron pipe fittings hold two different pipe parts together and direct gas and liquid movement.
