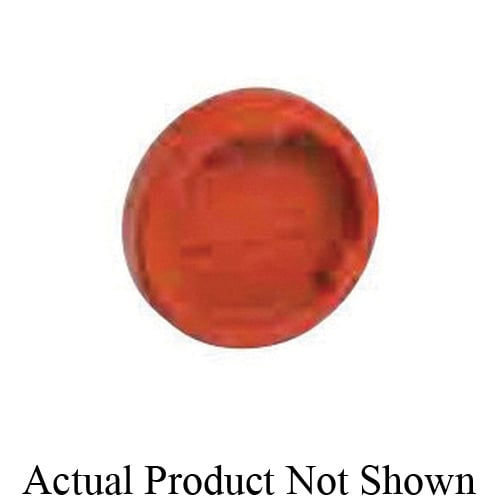

Victaulic® FireLock® F030006G00 Pipe Cap, 3 in, Grooved, Ductile Iron, Hot Dipped Galvanized


Description

Victaulic® FireLock® Pipe Cap, Series: 6 Series, Fitting/Connector Type: Cap, 3 in Nominal, Grooved, Ductile Iron, Hot Dipped Galvanized, 3-1/2 in OD

FireLock® products comprise a unique system specifically designed for fire protection services. FireLock full-flow elbows and tees feature CAD developed, hydrodynamic design, affording a shorter center-to-end dimension than standard fittings. A noticeable bulge allows the water to make a smoother turn to maintain similar flow characteristics as standard full flow fittings. FireLock fittings are designed for use exclusively with Victaulic couplings that have been Listed or Approved for Fire Protection Services. Use of other couplings or flange adapters may result in bolt pad interference.

Specifications

Dimensions 3-1/2 in OD
End Style Grooved
Finish Hot Dipped Galvanized
Fitting/Connector Type Cap
Material Ductile Iron
Nominal Size 3 in
Series 6 Series

Standards and Approvals: Ductile Iron Conforming to ASTM A536 Grade 65-45-12, cULus Listed, FM Approved, LPCB Approved, VdS Approved, CTP

Features

  • FireLock full-flow elbows and tees feature CAD-developed, hydrodynamic design, affording a shorter center-to-end dimension than standard fittings
  • Noticeable bulge allows the water to make a smoother turn to maintain similar flow characteristics as standard full flow fittings
