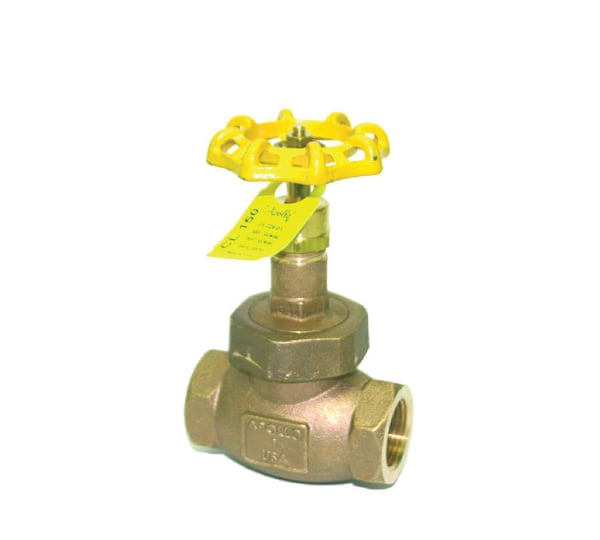

Apollo™ Apollo™ 3322501 122T Globe Valve, 1 in Nominal, NPT End Style, 150 lb, Bronze Body, Handwheel Actuator, Domestic


Description

Apollo™, 3322501, Globe Valve, Series: 122T, 1 in Nominal, NPT End Style, 300 psi CWP Pressure, 150 lb Pressure Class, -20 to 406 deg F, 12.1 gpm Flow Rate, Handwheel Actuator, 5.4 in Open Top to Inlet Center, Bronze Body, PTFE/Brass Trim, Graphite/Grafoil Softgoods, 3-3/4 in L Dimensions, Domestic

The Apollo™ Model 122T (33 Series) Globe Valve provides a cost effective Made in the USA alternative to globally sourced multi-turn valves. These valves are cast, machined, assembled, and tested in South Carolina. The Apollo™ globe valve can reliably be installed in most plumbing and heating systems (or building service piping).

Specifications

Actuator Type Handwheel
Body Material Bronze
Dimensions 3-3/4 in L
Domestic/Import Domestic
End Style NPT
Flow Rate 12.1 gpm
Nominal Size 1 in
Pressure Class 150 lb
Pressure Rating 300 psi CWP
Series 122T
Softgoods Material Graphite/Grafoil
Temperature Rating -20 to 406 deg F
Top to Inlet Center 5.4 in Open
Trim Material PTFE/Brass

Warranty: 5 Years

Country of Origin: United States

Standards and Approvals: ASME B1.20.1, ASTM B21 UNS C46400 Stem, ASTM B62 Body, MSS SP-80, MSS SP-104, PROP65: Cancer and Reproductive Harm

Application:
Plumbing And Heating Systems

Features

  • Optimum flow capacity
  • Dezincification resistant
  • 100% factory tested
  • Union bonnet
  • Malleable iron rugged hand wheel
  • Back seat protection
  • PTFE seat and disc/brass stem
