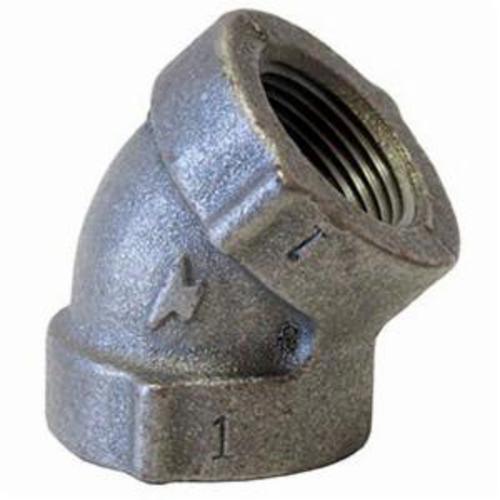

Anvil® 0300028404 FIG 356 Straight Pipe Elbow, 1/2 in Nominal, Thread End Style, 125 lb, Cast Iron, Black Oxide, Domestic


Description

Anvil® Straight Pipe Elbow, Series: FIG 356, 45 deg Elbow Fitting/Connector, 1/2 in Nominal, Thread End Style, SCH 40/STD Schedule, 125 lb Pressure Class, 175 psi Pressure, Cast Method of Manufacture, Cast Iron, Black Oxide, -20 to 150 deg F, Domestic/Import: Domestic

Anvil standard and extra heavy cast iron threaded fittings are manufactured in accordance with ASME B16.4 (except plugs and bushings, ASME B16.14). Dimensions also conform to Federal Specifications, WW-P-501 (except plugs and bushings WW-P-471). Cast iron threaded fittings are available in both black and galvanized.

Specifications

Domestic/Import Domestic
End Style Thread
Finish Black Oxide
Fitting/Connector Type 45 deg Elbow
Material Cast Iron
Method of Manufacture Cast
Nominal Size 1/2 in
Pressure Class 125 lb
Pressure Rating 175 psi
Schedule Rating SCH 40/STD
Series FIG 356
Temperature Rating -20 to 150 deg F

Country of Origin: United States

Standards and Approvals: ASME B16.4/B1.20.1, ASTM A126, cULus Listed, FM Approved

Features

  • Anvil standard and extra heavy cast iron threaded fittings are manufactured in accordance with ASME-B16.4 (except plugs and bushings, ASME B16.14).
