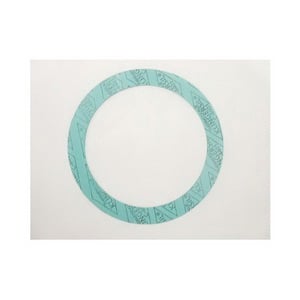

APG 13850RF062A0400 C4401 Ring Gasket, Thermoseal C4401, 4 in Nominal, 6-7/8 in OD 1/16 in THK, Class 150 Class, Domestic


Description

APG, 13850RF062A0400, Ring Gasket, Series: C4401, 4 in Nominal, 4-1/2 in ID, 6-7/8 in OD, 1/16 in Thickness, Class: Class 150, Upto 750 deg F, Thermoseal C4401, Green, Domestic

Specifications

Class Class 150
Color Green
Domestic/Import Domestic
Inside Diameter 4-1/2 in
Material Thermoseal C4401
Nominal Size 4 in
Outside Diameter 6-7/8 in
Series C4401
Temperature Rating Upto 750 deg F
Thickness 1/16 in
Type Ring Gasket

Country of Origin: United States

Standards and Approvals: ASTM F152

Features

  • Synthetic fiber, nitrile binder, excellent sealability, excellent chemical resistance, good creep relaxation and good general purpose sheet
  • Change in tensile strength 25% maximum decrease
  • ASTM F104 line call out 712121B3E21M6
  • 1500 psi typical tensile strength
